Product Name:XL430-W250-T
Product Code:902-0135-000
Availability:Yes

Product description:

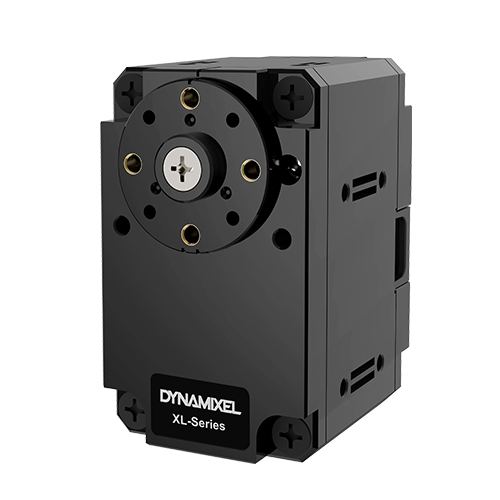

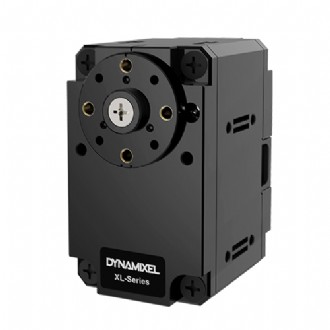

XL430-W250-T



Features

DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor + Reduction Gearhead + Controller + Driver + Network in one DC servo module.

The DYNAMIXEL XL series adopts new features that allow 360 degrees control mode with its contactless magnetic encoder and hollow back case assembly structure. The XL series has the same mechanical structure as the XM430 and XH430 and is compatible with the respective models.



  1. Various Operating Modes

Velocity Control, Position Control, Extended Position Control, PWM Control

  1. Profile Control for Smooth Motion Planning
  2. Hollow Back Case Minimizes Cable Stress (3-way-routing)
  3. Direct Screw Assembly to the Case (without Nut Insert) 5. Energy Saving with Reduced Current



Package Components

XL430-W250-T

1

HN11-N101 (Pre-assembled)

1

Robot Cable-X3P 180mm

1

Bolt (M2.6*5) TAP

5

Bolt (M2*5)

5

Bolt (PHS M2.5x14)

5

Spacer

5

*Not included Idler Set (HN11-I101 Set)





Compatible Products

Controller : OpenCM9.04 485 Expansion Board, OpenCR1.0

Interface : USB2Dynamixel, U2D2



Factory Default Settings

ID : 1

Baud Rate : 57600bps

(User can change various settings including ID and baud rate according to environment)



Caution

  • DYNAMIXEL-X Series cable assembly through hollow case
  • Organize the entangled cable before assembling the back case.
  • Do not assemble the back case with entangled cable. The entangled cable can be squashed by the case and cause communication error.
  • If you use two cables through the hollow case, the cables will be damaged.
  • Use only one cable through the hollow case.
  • The DYNAMIXEL-X Series adopted a new gold-plated JST connector for secure and reliable communication.
  • The connector used for previous DYNAMIXEL is Molex.
  • To control DYNAMIXEL-X Series actuators via OpenCM or USB2Dynamixel, please use the JST-Molex Convertible Cable enclosed in the package.
  • However, the Molex-JST convertible cable is NOT included in the XL430 model.
  • Please purchase a convertible cable when using a controller and interface that supports the JST connector.





Controller Model

Controller Connector

Cable

DynamixelX

Connector

Dynamixel

Communication

OpenCM+485 Expansion Board

Molex (3P, 4P)

Robot Cable-X3P 180mm (Convertible)

JST-3P

TTL

USB2Dynamixel

Molex (3P, 4P)

Robot Cable-X3P 180mm (Convertible)

JST-3P

TTL

OpenCR1.0

JST (3P, 4P)

Robot Cable-X3P (by length)

JST-3P

TTL

U2D2

JST (3P, 4P)

Robot Cable-X3P (by length)

JST-3P

TTL

OpenCM+485 Expansion Board

Molex (3P, 4P)

Robot Cable-X4P 180mm (Convertible)

JST-4P

RS-485

USB2Dynamixel

Molex (3P, 4P)

Robot Cable-X4P 180mm (Convertible)

JST-4P

RS-485

OpenCR1.0

JST (3P, 4P)

Robot Cable-X4P (by length)

JST-4P

RS-485

U2D2

JST (3P, 4P)

Robot Cable-X4P (by length)

JST-4P

RS-485







Various Cabling Methods



Specification



Model Name

XL430-W250-T

MCU

Cortex-M3 (72 [Mhz], 32 [bit])

Input Voltage

Min. [V]

6.5

Recommended [V]

11.1

Max. [V]

12.0

Performance Characteristics

Voltage [V]

12.0

Stall Torque [N·m]

1.50

Stall Current [A]

1.4

No Load Speed [rpm]

61.0

No Load Current [A]

0.15

Continuous Operation

Voltage [V]

-

Torque [N·m]

-

Speed [rpm]

-

Current [A]

-

Resolution

Resolution [deg/pulse]

0.0879

Step [pulse]

4,096

Angle [degree]

360

Position Sensor

Contactless absolute encoder (12 [bit], 360 [deg]) Maker : ams(www.ams.com), Part No : AS5045

Operating Temperature

Min. [°C]

-5

Max. [°C]

72

Motor

Cored

Baud Rate

Min. [bps]

9,600

Max. [bps]

4,500,000

Control Algorithm

PID

Gear Type

Spur

Gear Material

Engineering Plastic

Case Material

Engineering Plastic

Dimensions (WHD) [mm]

28.5 X 46.5 X 34.0

Dimensions (WHD) [inch]

1.12 X 1.83 X 1.34

Weight [g]

57.20

Weight [oz]

2.02

Gear Ratio

258.5 : 1

Command Signal

Digital Packet

Protocol Type

Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)

Link (Physical)

TTL Level Multi Drop Bus

ID

0 ~ 252

Feedback

Position, Velocity, Load, Realtime tick, Trajectory, Temperature, Input Voltage, etc

Protocol version

1.0 2.0(Default)

Operating Mode / Angle

Velocity Control mode:Endless turn Position Control Mode:360 [deg] Extended Position Control Mode:±256 [rev] PWM Control Mode:Endless turn

Output [W]

-

Standby Current [mA]

52
